HDD Drilling Mud Recycling System

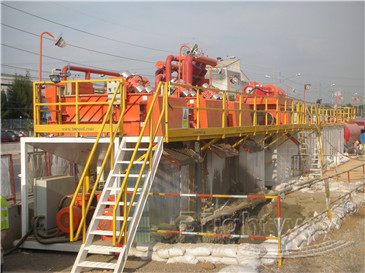

Thailand HDD Mud System cases



Thailand 1000 GPM MUD SYSTEM (2 SETS)SPECIFICATION AS BELOW:

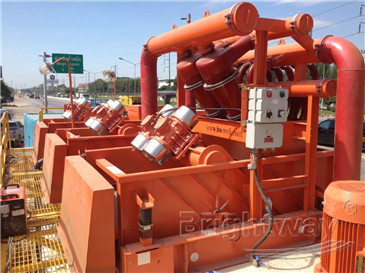

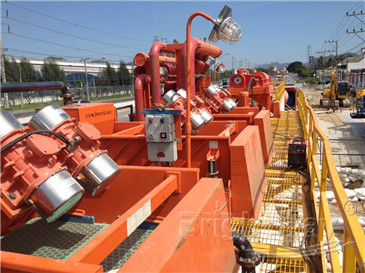

2 SETS SHALE SHAKER, BWZS70-3P, 2X1.5 KW motor, 3screens with area of 2.1 ㎡.
1 SET MUD CLEANER, BWZJ70-2S12N, the combination of desander and desilter, small foot print, and cyclones are interchangeable with Derrick cyclones.

3 SETS CENTRIFUGAL PUMP, BWSB8x6-13J, 55kw, interchangeable with Mission Pump.
9 SETS MUD AGITATOR, BWJBQ11, 11KW, with galvanizing treatment, best anti-rust performance and no corner missed in the process.
1 SET JET MUD MIXER, BWSLH150-50, with galvanizing treatment, best anti-rust performance and no corner missed in the process.
6 SETS MUD GUN, BWNJQ-50, with nice sealing performance of the nozzle, it can reach a big jet strength.

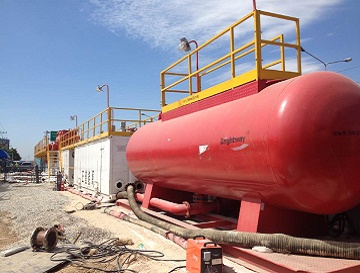

3 SETS MUD TANK, 8m*2.2m*2.2m,1 SET Recycling Tanks 11×2.2×2.2m,1 SET Hydration Tank 8×2.2×2.2m.



Hydration Tank BW
