Drilling Mud Cooler

Drilling Mud Cooler (Mud Cooling System)

Drilling Mud Cooler also known as drilling mud chiller or drill cool system. It is generally erected in the mud pool to cool down the high temperature mud. The drilling mud cooler is through indirect contact between air and mud to evaporate the heat in the mud. The cooling medium is air. Mud cooling system is a special equipment used to cool down the high temperature mud in the well during the drilling process. It is currently a relatively efficient and safe method of mud chilling.

Mud Chilling System and Mud cooling system

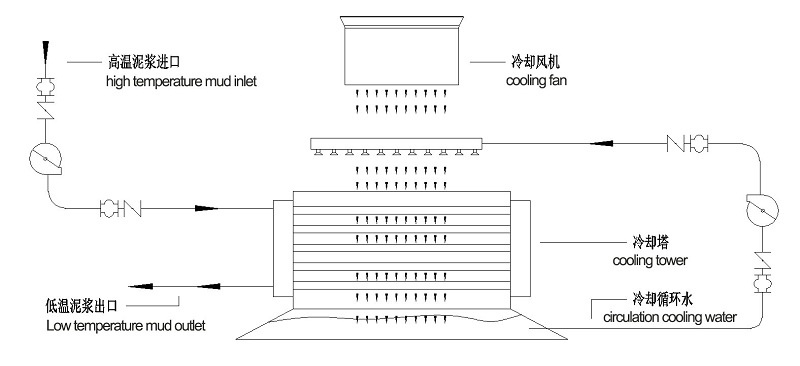

Working Principle of Drilling Mud Cooler

The working process is that The hot mud enters the Mud Cooler (mud cooling system) . Cooling water and cooling fan provide high strength cold air and circulating cooling water to the cooling tower. When the high temperature mud circulates in the cooling tower, Due to the fan and cooling water action, It keeps giving off a lot of heat, The available cool mud will flow from the bottom pipe of the cooling tower.

Working Principle of Drilling Mud Chiller

Brightway drilling Mud Cooler can reduce the mud temperature by 30-40℃. High cooling efficiency and fast cooling speed. Large processing capacity, small footprint. Continuous Work, Cooling obvious.

Configuration Parameters of Brightway Mud Cooling System

Mud Chilling System parameters

Drilling Mud Cooler Video

This video is Brightway Drilling Mud Cooler on drilling site in China. the Capacity of drilling mud cooler is up to 120m³/h, and The high-temperature mud from drilling wellhead can be cooled by 30-50 degrees. Mud cooling effect is remarkable. Our drilling mud cooling solutions are proven to:

1. Avoid the possibility of a well fire due to the drill head exceeding flashpoint temperatures

2. Increase drill head life resulting in fewer pullbacks for the drill

3. Eliminate non-production time to avoid significant financial penalties
