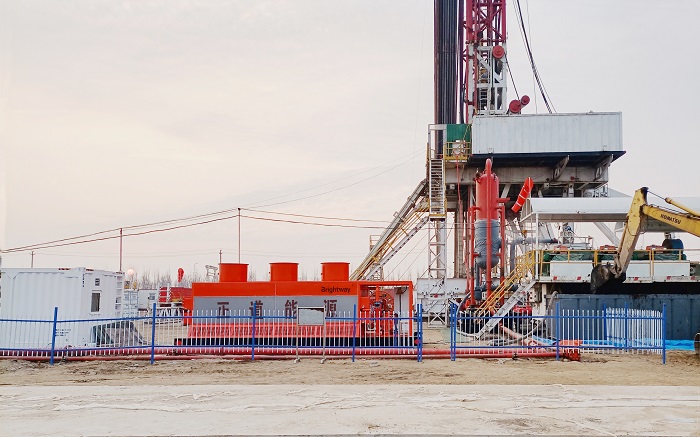

Drilling Mud Cooling System is a special equipment used in oil fields to cool drilling fluids. It can cool the drilling mud by the principle of physics. It has the characteristics of rapid cooling and high cooling efficiency. After circulating through the Drilling Mud Cooling System, the drilling fluids temperature will go from more than 75 degrees to about 45 degrees. The maximum temperature of drilling fluids drop can reach 40 degrees.

Drilling mud cooling system is mainly composed of cooling fan, spray system, cooling device. After the high temperature drilling fluids enters the mud cooling system, cooling fan and spray system provide high strength cold air and circulating cooling water, When the high temperature mud circulates in the cooling tower, a large amount of heat is continuously emitted due to the action of the fan and cooling water. The usable cold mud flows out of pipes at the bottom of the drilling mud cooling system.

Compared with other natural cooling method and solid conduction cooling method, The drilling mud cooling system is a relatively safe and reliable mud cooling method. It has the characteristics of small space, large capacity, cooling fast etc. Drilling Mud Cooling System is used in oil and gas field drilling, especially in deep Wells.  The rapid cooling of mud also solves the problem of directional instrument and mud performance. It really breaks through the bottleneck of the influence of drilling on temperature, and becomes the key equipment of high temperature drilling fluid cooling.
